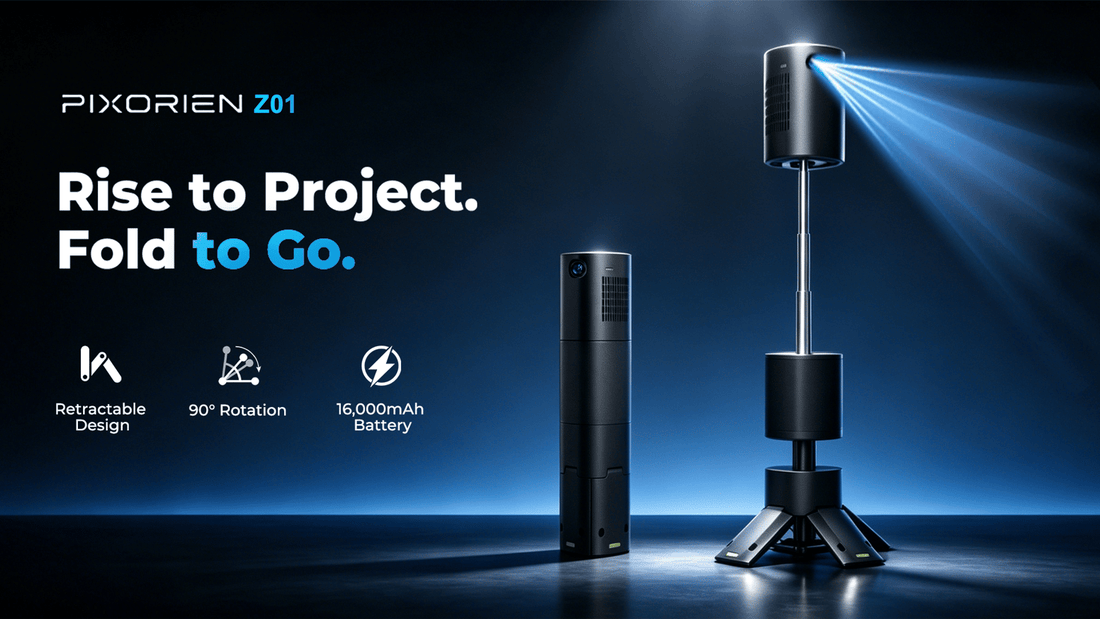

Pixorien Z01: The Retractable Projector Built to Fix Awkward Placement

Portable projectors promise a large screen almost anywhere, but their setup often tells a different story. A separate tripod, a nearby outlet, an improvised stack of books, and repeated angle adjustments can make a supposedly portable device feel surprisingly fixed. Pixorien Z01 approaches that problem as a piece of mobile furniture as much as a projector: its body opens into a lift-style stand and retracts again for storage.

According to the official Pixorien Z01 Kickstarter campaign, the system combines a retractable structure, a 16,000mAh built-in battery, 90-degree projection adjustment, Android 12, an internal Bluetooth speaker, and what the creator describes as 2K visuals at 500 ANSI brightness. As of July 15, 2026, the campaign had raised exactly $30,889 from 103 backers against a $2,000 goal.

The significant idea is not one isolated specification. It is the attempt to combine projection, positioning, power, audio, and smart software into one structure that can move from room to room without carrying a separate support kit.

The Placement Problem Portable Projectors Rarely Solve

A projector needs more than a blank wall. It needs a stable surface, the right height, enough distance, and an angle that keeps the image where viewers want it. Small projectors reduce the size of the display hardware, but they do not automatically solve those geometric requirements. Users can still end up looking for a table, attaching a stand, or shifting furniture to make the picture land correctly.

Pixorien Z01 treats placement as part of the product. Its projector module rises above a support base on a retractable rod, while folding legs stabilize the lower section. That integrated architecture matters because it turns the stand from an accessory into a permanent part of the viewing system. When the session ends, the structure retracts into a more compact form instead of leaving a projector and tripod to store separately.

This design also explains why the Z01 is more interesting than a conventional specification race. Resolution and brightness still matter, but a projector that is easier to position may get used more often than a technically stronger model that remains inconvenient to set up.

A Lift Built Into the Projector

The campaign presents the Z01 as a lift-style projector with an adjustable central rod. The upper projector module includes controls and a focus dial, while the lower body incorporates the speaker, power system, support base, and folding legs. Instead of mounting a projector onto an external pole, the support mechanism is built into the same product.

That structure creates two practical modes. Extended, the projector can reach a more useful viewing height without occupying a table. Retracted, the device becomes easier to place on a shelf or carry between spaces. The value is clearest in rooms where people do not want permanent AV furniture: apartments, bedrooms, multipurpose living rooms, and temporary outdoor setups.

The tradeoff is mechanical complexity. A retractable rod, moving joints, and folding supports introduce more wear points than a solid projector enclosure. The campaign page explains the concept clearly, but backers should still evaluate how the lock, hinges, and base behave under repeated use. Stability on uneven surfaces is especially important for a tall, narrow system.

Cordless Viewing Starts With a 16,000mAh Battery

The Z01 campaign specifies a 16,000mAh internal battery. This is central to the product's portability claim because an integrated stand has less practical value if the projector must always remain beside an outlet. Battery power opens up temporary use in a bedroom, on a patio, or in another space where routing a cable would be awkward.

Capacity alone does not establish real viewing time. Projector brightness, speaker volume, wireless activity, battery voltage, and power-management settings all affect runtime. The campaign's capacity figure is useful, but prospective backers should look for a clearly defined test condition before translating it into the length of a movie or presentation.

The more defensible takeaway is that the Z01 is designed to operate without continuous wall power. That is a meaningful distinction from projectors that are small enough to carry but still depend on a power brick during every session.

How to Read the 2K and 500 ANSI Claims

Pixorien describes the Z01 as delivering 2K visuals and 500 ANSI brightness. Those are the campaign's terms, and they should be read carefully. “2K” can be used differently across projector marketing, so backers should confirm the native imaging resolution rather than assuming a specific pixel matrix from the label alone. They should also distinguish native output from the maximum resolution a device can decode or accept.

Similarly, 500 ANSI is more informative than an unlabeled lumen figure, but the viewing result will still depend on image size, wall or screen reflectivity, ambient light, and measurement methodology. A dark bedroom and a bright living room are fundamentally different environments. The campaign shows use across indoor and outdoor scenarios, yet buyers should match expectations to the lighting they actually control.

This is not a reason to dismiss the specifications. It is a reason to ask the right follow-up questions. Native resolution, measured brightness, contrast behavior, and focus uniformity will determine whether the Z01's convenient structure is paired with convincing image quality.

From Wall to Ceiling With 90-Degree Adjustment

The projector module can rotate through 90 degrees, according to the campaign. That allows the image to move from a wall toward a ceiling without relocating the entire base. For bedroom viewing, ceiling projection can be more comfortable than arranging pillows around a wall-facing screen. In a living room, angle adjustment can help clear low furniture or adapt to a temporary screen.

The integrated lift and rotating head work together: one controls height, while the other changes direction. This combination is the Z01's strongest functional argument. It addresses the physical setup of projection rather than treating portability as enclosure size alone.

Backers should still verify how image correction works at steeper angles. Digital keystone correction can make setup faster, but aggressive correction may reduce the usable pixel area and affect sharpness. The campaign's 90-degree movement claim describes physical range; it does not by itself establish image quality at every position.

Android 12, Voice Control, and Built-In Audio

Pixorien says the Z01 runs Android 12, supports app browsing and content streaming, and includes a voice-enabled remote. The lower section also functions as a Bluetooth speaker. Together, those features aim to reduce the number of devices needed for casual viewing: the projector can supply its own interface, sound, and control method.

For a smart projector, the software details matter as much as the operating-system version. App availability, certification, digital-rights-management support, security updates, and interface responsiveness can determine whether built-in streaming is genuinely convenient. Backers who rely on a particular service should verify compatibility directly rather than infer it from Android support.

Built-in sound is useful for travel and quick sessions, but it should be judged as a convenience feature until output and listening tests are available. The campaign identifies an internal Bluetooth speaker but does not need to replace a dedicated home audio system for the overall product concept to make sense.

Who Pixorien Z01 Is For

Pixorien Z01 is best suited to people who value flexible placement more than a permanent theater installation. Apartment residents can reclaim space after viewing. Bedroom users can aim toward a wall or ceiling. Families can move one display between rooms, and casual outdoor viewers can avoid building a separate projector-and-tripod kit for each session.

It is less obviously suited to buyers building a fixed, light-controlled home theater. In that setting, a ceiling-mounted projector, dedicated screen, separate speakers, and calibrated source equipment may provide more predictable performance. The Z01's main advantage is not permanence; it is the ability to set up, reposition, and pack away with fewer components.

The campaign's strong early response suggests that this usability problem resonates. Raising $30,889 from 103 backers against a $2,000 goal is a notable signal of interest, but crowdfunding totals are not a substitute for product testing or long-term reliability data.

What Backers Should Verify

Before making a decision, prospective backers should verify the native display resolution, the test method behind the 500 ANSI claim, and realistic battery runtime at different brightness levels. Those details will define the picture more precisely than broad labels.

It is also worth confirming supported ports and wireless standards, streaming-app certification, warranty coverage, replacement-part availability, and whether the speaker can operate independently when projection is off. For the retractable structure, useful evidence would include repeated extension testing, lock strength, tip resistance, and performance on slightly uneven floors.

The official Pixorien Z01 project page remains the correct place to review the creator's current specifications, demonstrations, and campaign disclosures.

Summary

Pixorien Z01 makes a focused argument: a portable projector should solve its own placement problem. Its retractable lift, folding support, 16,000mAh battery, 90-degree adjustment, Android 12 interface, and built-in Bluetooth speaker are designed to reduce the accessories and furniture normally involved in casual projection.

The integrated structure is the product's clearest differentiator. The most important unanswered questions concern native image specifications, measured runtime, software certification, and long-term mechanical stability. If those details hold up, the Z01 could be compelling for viewers who want a large screen that does not claim a permanent place in the room.

Frequently Asked Questions

What is the Pixorien Z01?

Pixorien Z01 is a portable smart projector built around a retractable lift-style stand. The projector module, support structure, battery, speaker, and smart interface are integrated into one system.

Does Pixorien Z01 have a built-in battery?

Yes. The official campaign lists a 16,000mAh internal battery. Actual runtime will depend on brightness, audio volume, wireless use, and other operating conditions.

What do the 2K and 500 ANSI specifications mean?

Those are the creator's campaign claims for image detail and brightness. Backers should confirm the native pixel resolution and the measurement conditions used for brightness before comparing the Z01 with other projectors.

Can it project onto a ceiling?

The campaign says the projector module supports 90-degree adjustment, allowing it to aim toward a wall or ceiling. Image correction and sharpness at steep angles should still be evaluated in demonstrations or independent tests.

Does it need an external streaming device or speaker?

The Z01 runs Android 12 and includes a Bluetooth speaker, so it is designed for self-contained playback. Compatibility with specific streaming services and the audio performance required for a particular room should be confirmed separately.

Has BackerRock independently tested Pixorien Z01?

No. This analysis is based on publicly available campaign information. Product specifications and demonstrations discussed here are creator claims unless otherwise stated.

Editorial note: This article is an independent BackerRock analysis based on publicly available campaign information. It does not represent the position of Kickstarter, Indiegogo, or any crowdfunding platform, and should not be treated as investment, purchasing, or market advice.
