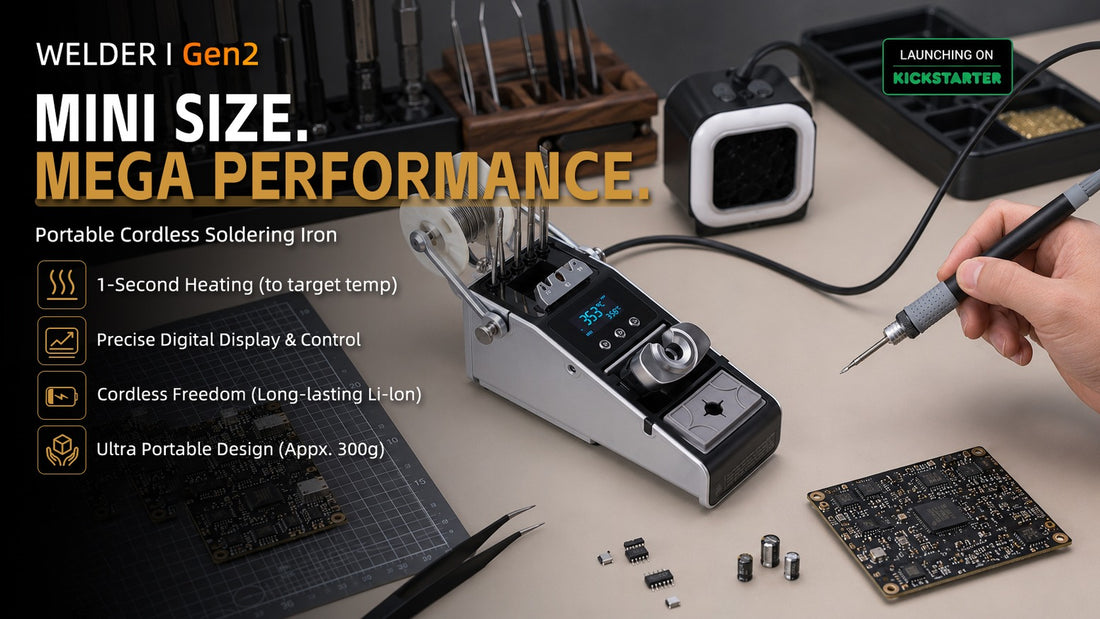

Welder Gen2: 1-Second Heat, 65W Power, and Key Specs

At review time, Kickstarter displayed US$19,190 pledged by 78 backers toward a displayed US$1,274 goal for Welder Gen2. The appeal is straightforward: this is a compact soldering station designed to work away from a traditional bench while retaining digital temperature control, replaceable batteries, and an integrated tip-cleaning system. The creator claims it can reach 350°C in one second and accept up to 65W of input power.

The Welder Gen2 Kickstarter campaign provides an unusually dense feature list, but several important details conflict across the main story, technical section, reward page, and FAQ. This analysis separates the published specifications from the points that still need a direct answer.

A Portable Station, Not Just a Cordless Iron

Welder Gen2 is built around a compact base that combines power management, a 1.3-inch OLED screen, adjustable controls, a soldering-iron connection, battery storage, and an automatic cleaning brush. That makes it closer to a portable workstation than a standalone pen-style iron.

The campaign says the second-generation design cuts the previous model's three-second heat-up claim to one second. It also moves beyond a fixed internal battery by using three swappable 18650 lithium cells. For field repair, electronics modification, prototypes, and mobile service work, that architecture targets the two biggest constraints of portable soldering: waiting for heat and stopping when the battery is depleted.

These figures are campaign claims, not measurements from an independent test. A one-second warm-up is especially sensitive to power source, tip geometry, starting temperature, and the point at which the device considers itself ready.

The 1-Second Heating Claim Needs Context

The creator states that Welder Gen2 reaches a working temperature of 350°C in one second. If repeatable, that would reduce the friction of short repair jobs where setup time can exceed actual soldering time. The 150°C to 450°C range also covers the broad operating window the campaign targets for circuit boards, small components, and heavier joints.

However, the page does not publish a thermal recovery curve, test load, ambient starting temperature, tip used for the measurement, or temperature-overshoot data. It also does not distinguish display accuracy from closed-loop tip accuracy. The claimed ±1°C figure should therefore be read as a creator specification until test conditions are documented.

How the Dual-Power System Is Supposed to Work

Welder Gen2 is presented as both cordless and wired. Cordless operation uses three removable 18650 cells rated at 3000mAh each. The campaign claims approximately one hour of continuous soldering and says depleted cells can be exchanged rather than waiting for the device to recharge.

The USB-C specification lists a 20V/2A charging input, while the main story states support for up to 65W of input power. The FAQ separately lists a 65W power adapter as an add-on. The reviewed pages do not clearly explain whether maximum heating performance is available from the battery pack, a wired 65W adapter, or both. That operating-mode distinction is one of the most important questions for buyers who need repeatable performance away from a bench.

The campaign also claims overcharge and short-circuit protection through a battery-management system. It does not publish named battery or electrical safety certifications on the reviewed pages. Users should verify compatible cell requirements, protected versus unprotected cell support, maximum discharge current, polarity safeguards, and the exact adapter specification.

OLED Controls, Motion Wake, and Sleep Settings

The 1.3-inch OLED is described as a high-contrast, anti-glare display for working temperature, battery percentage, and active mode. Temperature lock is intended to prevent accidental adjustment during repetitive work. A motion sensor supports vibration wake, returning the iron to its selected temperature after a rest period.

The sleep specification is not fully consistent. One section describes an adjustable 10-to-600-second inactivity range. The technical section also references 0-to-600 seconds before describing 10-to-600-second behavior. Buyers should ask whether sleep can be disabled, what the default is, and how long the device remains at a reduced temperature before a deeper power state.

The Automatic Tip-Cleaning Brush Is the Real Workflow Feature

The most distinctive part of the base is the integrated cleaning brush. The campaign says a proximity-based sensor starts the brush when the tip approaches, reducing the need to stop and wipe manually. Its published specifications are up to 350 RPM, a 25mm diameter, a 20mm length, and 0.15mm copper wire with a frosted surface treatment.

For mobile work, integrating tip maintenance into the station can be more useful than adding another headline power figure. A clean, properly tinned tip transfers heat more consistently. The unanswered questions are brush replacement availability, sensor detection distance, debris containment, and whether the wire treatment is appropriate for every supported tip coating.

Two Different Size and Weight Stories Appear on the Page

The campaign's portability section and technical specification block do not agree on the physical dimensions.

The second set is more detailed, but the campaign does not explicitly identify it as the final production specification. Backers should request a single confirmed drawing with exterior dimensions, weight with the required cells, and the footprint of the assembled iron holder.

A creator update also uses the phrase "aviation-grade casing," while the technical section describes a high-strength, heat-resistant shell without naming the material. No specific aluminum alloy, polymer, or composite is identified on the reviewed pages.

Reward Contents and Tip Names Need Clarification

The campaign's main "In The Box" section lists the station, a soldering iron, extension pillars, bracket screws, long screws, and a rotation axis. An earlier accessory section calls the iron a T211. The FAQ, however, says the basic reward includes the Welder Soldering Station G2 and lists the 65W adapter and soldering iron among add-on rewards.

The FAQ also says three soldering-iron models are available: C210-I, C210-IS, and C210-K. Those names may refer to tip geometries, but the campaign does not explain the relationship between the T211 label and the C210 choices. Buyers should not assume compatibility with a broader tip ecosystem until the connector, heater, sensor, and replacement-tip standard are confirmed.

The reward card labels the item as a "Welder Pro Gen2 Portable Wireless Soldering Station Combo" without presenting a complete text inventory. Before selecting the current lowest product reward, confirm whether the iron, cells, USB-C adapter, holder hardware, cleaning brush, and tip choice are included or separate.

Who Welder Gen2 Is For

• Mobile repair technicians who need controlled heat without carrying a full desktop station.
• Electronics hobbyists who move between a workbench, makerspace, vehicle, and field kit.
• Prototype builders who value fast startup for short soldering sessions.
• Existing 18650 users who prefer removable cells, provided their batteries meet the final compatibility requirements.

It is less suitable for buyers who need a fully documented professional tool immediately. The campaign has a strong functional concept, but the physical specification, reward contents, power-mode behavior, tip system, and certification status still require confirmation.

What Backers Should Verify

• The final exterior dimensions and operating weight with all required batteries installed.
• Whether the one-second 350°C claim applies in both wired and cordless modes, and which tip was used for the test.
• Which mode supports the stated 65W input and whether the 65W adapter is included.
• Whether the three 18650 cells are included and the required cell chemistry, discharge rating, length, and protection format.
• The relationship between the T211 iron label and the C210-I, C210-IS, and C210-K options.
• The exact contents of the selected reward, including iron, tip, adapter, holder hardware, and cleaning-brush consumables.
• Independent evidence for temperature accuracy, thermal recovery, overshoot, and one-hour runtime.
• Applicable battery, charger, electromagnetic, and product-safety certifications.
• Replacement availability for tips, the cleaning brush, cables, and battery components.
• The terms of the campaign's stated one-year quality guarantee.

Summary

Welder Gen2 has a coherent field-repair thesis: combine a fast-heating iron, removable battery power, a readable OLED, motion-based power management, and automatic tip cleaning in one portable base. The claimed 150°C-to-450°C range, one-second warm-up, and 65W input make it more ambitious than a basic cordless soldering pen.

The campaign also contains material ambiguities. Two dimension sets appear, sleep timing is described differently across sections, and the FAQ does not align cleanly with the main in-box list. The T211 and C210 naming needs explanation, while maximum-power behavior and certification status remain unstated. Those gaps do not erase the product's practical appeal, but they should be resolved before judging it as a finished technical system. Check the official Welder Gen2 Kickstarter page for the latest creator-provided details.

Frequently Asked Questions

How fast does Welder Gen2 heat?

The creator claims it can reach 350°C from room temperature in one second. The campaign does not publish the test conditions, tip used, thermal recovery curve, or independent validation.

What temperature range does it support?

The published range is 150°C to 450°C, with a claimed adjustment accuracy of ±1°C. Buyers should ask whether that figure describes display resolution, control accuracy, or measured tip accuracy.

What batteries does Welder Gen2 use?

The campaign describes three removable 3000mAh 18650 lithium cells, each rated at a nominal 3.7V. The reviewed pages do not clearly confirm whether cells are included or specify the required discharge rating and protection format.

What is the lowest product price?

Kickstarter displayed the lowest current product reward at approximately US$189 at review time. The exact included hardware should be confirmed from the selected reward and creator FAQ.

Does the base include an automatic tip cleaner?

Yes. The creator describes a sensor-activated copper-wire brush rated at up to 350 RPM. Replacement-brush details and the sensor's operating range are not published on the reviewed pages.

How large and heavy is Welder Gen2?

The campaign is inconsistent. One section states 150mm × 60mm × 70mm and 300g; the technical block states 170mm × 70mm × 70mm, 480g with batteries, and 300g without batteries.

Which soldering tips are supported?

The main story names a T211 soldering iron, while the FAQ lists C210-I, C210-IS, and C210-K choices. The reviewed pages do not explain the relationship or confirm broader third-party compatibility.

Is this a hands-on review?

No. This article is based on the official campaign page, rewards, FAQ, and creator update. BackerRock has not independently tested the hardware.
